Vodafone Smart N9 lite

Vodafone Smart N9 lite

Android 8.1

How to guides

Set up your phone for IMAP email

You can set up your phone to send and receive email messages from your email accounts. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 33

Slide your finger downwards starting from the top of the screen.

Step 2 of 33

Press the settings icon.

Step 3 of 33

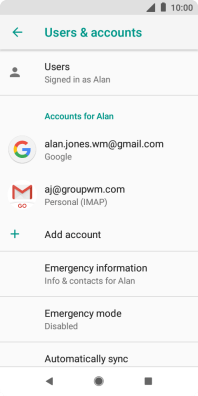

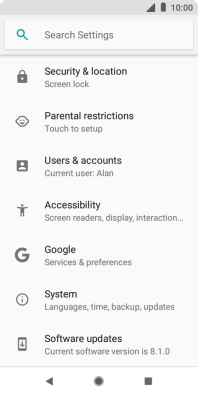

Press Users & accounts.

Step 4 of 33

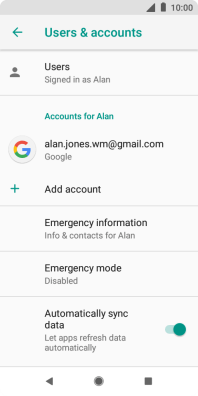

Press Add account.

Step 5 of 33

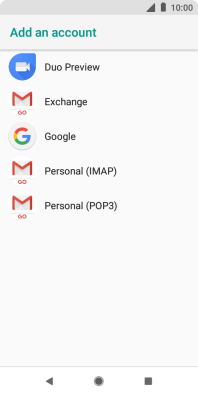

Press Personal (IMAP).

Step 6 of 33

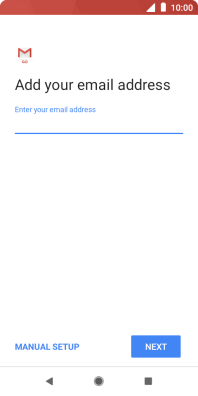

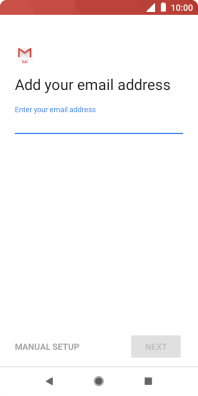

Press the field below "Enter your email address" and key in your email address.

Step 7 of 33

Press NEXT.

Step 8 of 33

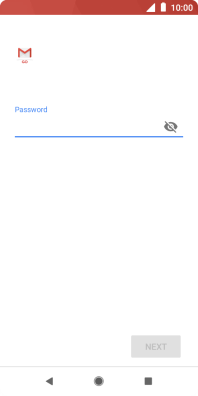

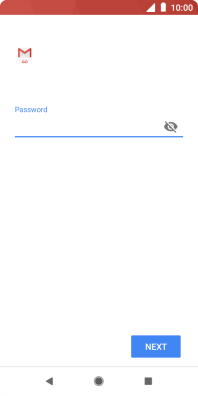

Press the field below "Password" and key in the password for your email account.

Step 9 of 33

Press NEXT.

Step 10 of 33

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 11 of 33

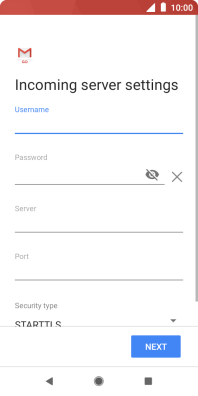

Press the field below "Username" and key in the username for your email account.

Step 12 of 33

Press the field below "Server" and key in the name of your email provider's incoming server.

143
Step 13 of 33

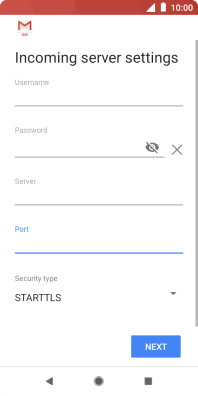

Press the field below "Port" and key in 143.

Step 14 of 33

Press the drop down list below "Security type".

Step 15 of 33

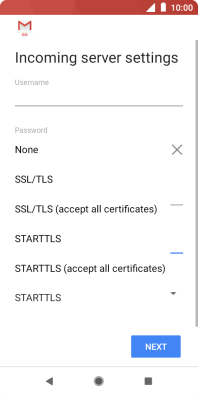

Press None to turn off the function.

Step 16 of 33

Press NEXT.

Step 17 of 33

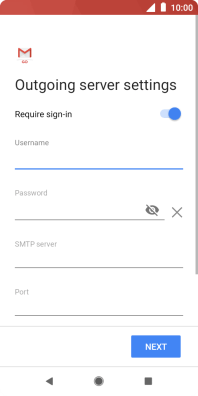

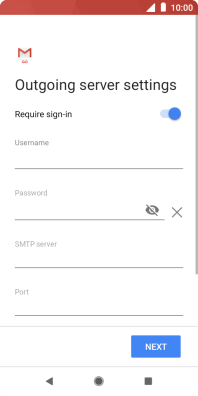

Press the indicator next to "Require sign-in" to turn on the function.

Step 18 of 33

Press the field below "Username" and key in the username for your email the email provider's outgoing server.

Step 19 of 33

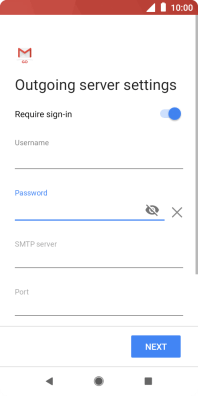

Press the field below "Password" and key in the password for your email provider's outgoing server.

Step 20 of 33

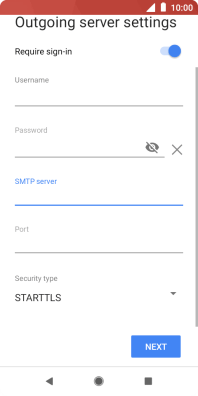

Press the field below "SMTP server" and key in the name of your email provider's outgoing server.

25
Step 21 of 33

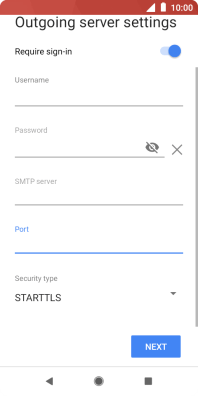

Press the field below "Port" and key in 25.

Step 22 of 33

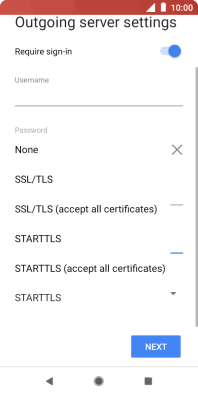

Press the drop down list below "Security type".

Step 23 of 33

Press None to turn off the function.

Step 24 of 33

Press NEXT.

Step 25 of 33

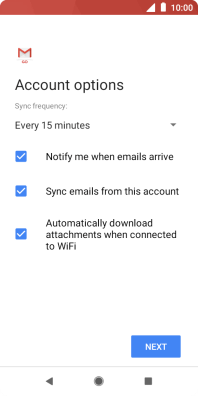

Press the drop down list below "Sync frequency:".

Step 26 of 33

Press the required setting.

Step 27 of 33

Press Notify me when emails arrive to turn the function on or off.

Step 28 of 33

Press Sync email for this account to turn on the function.

Step 29 of 33

Press NEXT.

Step 30 of 33

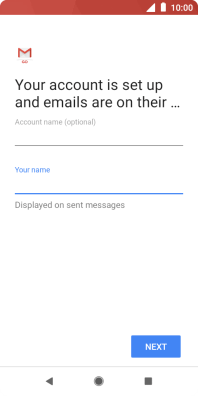

Press the field below "Account name (optional)" and key in the required name.

Step 31 of 33

Press Your name and key in the required sender name.

Step 32 of 33

Press NEXT.

Step 33 of 33

Press the Home key to return to the home screen.

1. 1. Find "Users & accounts"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Users & accounts.

2. 2. Create new email account

Press Add account.
Press Personal (IMAP).

3. 3. Enter email address

Press the field below "Enter your email address" and key in your email address.
Press NEXT.

4. 4. Enter password

Press the field below "Password" and key in the password for your email account.
Press NEXT.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

5. 5. Enter username

Press the field below "Username" and key in the username for your email account.

6. 6. Enter incoming server

Press the field below "Server" and key in the name of your email provider's incoming server.

7. 7. Enter incoming port

Press the field below "Port" and key in 143.
143

8. 8. Turn off encryption of incoming email messages

Press the drop down list below "Security type".
Press None to turn off the function.
Press NEXT.

9. 9. Turn on SMTP authentication

Press the indicator next to "Require sign-in" to turn on the function.
Press the field below "Username" and key in the username for your email the email provider's outgoing server.
Press the field below "Password" and key in the password for your email provider's outgoing server.

10. 10. Enter outgoing server

Press the field below "SMTP server" and key in the name of your email provider's outgoing server.

11. 11. Enter outgoing port

Press the field below "Port" and key in 25.
25

12. 12. Turn off encryption of outgoing email messages

Press the drop down list below "Security type".
Press None to turn off the function.
Press NEXT.

13. 13. Select setting for retrieval of new email messages

Press the drop down list below "Sync frequency:".
Press the required setting.

14. 14. Turn email message notifications on or off

Press Notify me when emails arrive to turn the function on or off.

15. 15. Turn on email message synchronisation

Press Sync email for this account to turn on the function.
Press NEXT.

16. 16. Enter email account name

Press the field below "Account name (optional)" and key in the required name.

17. 17. Enter sender name

Press Your name and key in the required sender name.
Press NEXT.

18. 18. Return to the home screen

Press the Home key to return to the home screen.
