Samsung Galaxy Tab A 10.1 (2016)

Samsung Galaxy Tab A 10.1 (2016)

Android 6.0

How to guides

Set up your tablet for internet

The internet connection is shared by many functions on your tablet such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for internet manually.

Step 1 of 21

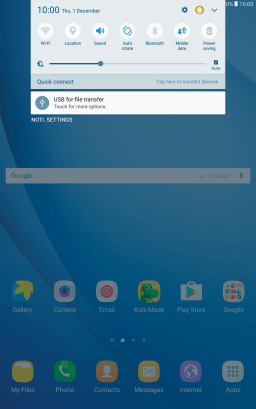

Slide your finger downwards starting from the top of the screen.

Step 2 of 21

Press the settings icon.

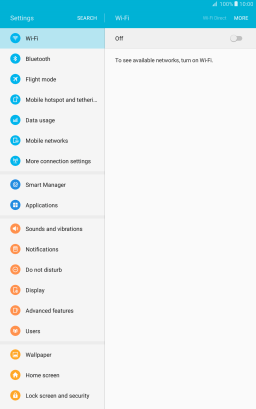

Step 3 of 21

Press Mobile networks.

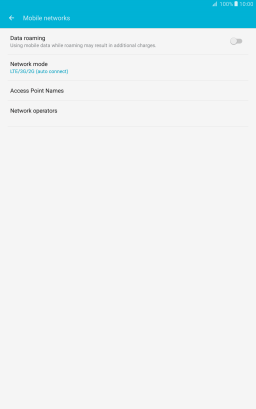

Step 4 of 21

Press Access Point Names.

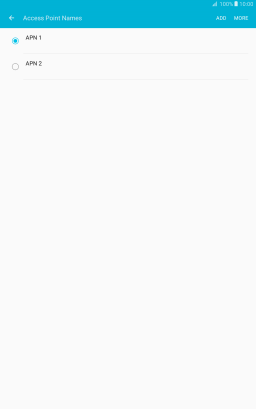

Step 5 of 21

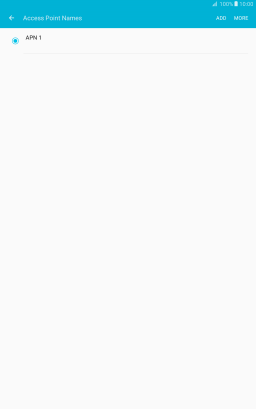

Press ADD.

Step 6 of 21

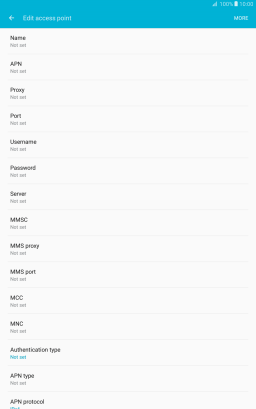

Press Name.

One NZ Internet
Step 7 of 21

Key in One NZ Internet and press OK.

Step 8 of 21

Press APN.

vodafone
Step 9 of 21

Key in vodafone and press OK.

Step 10 of 21

Press MCC.

530

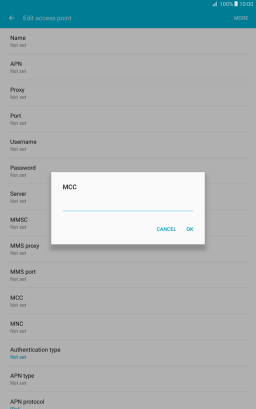

Step 11 of 21

Key in 530 and press OK.

Step 12 of 21

Press MNC.

01
Step 13 of 21

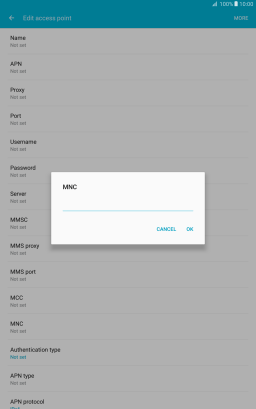

Key in 01 and press OK.

Step 14 of 21

Press Authentication type.

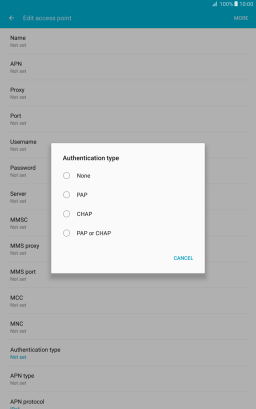

Step 15 of 21

Press PAP.

Step 16 of 21

Press APN type.

default

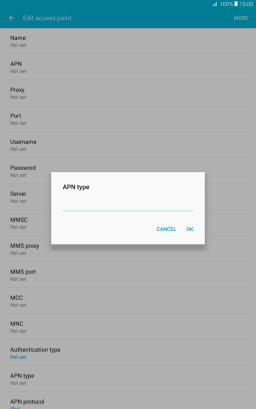

Step 17 of 21

Key in default and press OK.

Step 18 of 21

Press MORE.

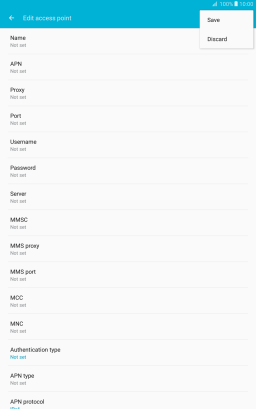

Step 19 of 21

Press Save.

Step 20 of 21

Press the field next to the data connection to activate it.

Step 21 of 21

Press the Home key to return to the home screen.

1. 1. Find "Access Point Names"

Slide your finger downwards starting from the top of the screen.
Press the settings icon.
Press Mobile networks.
Press Access Point Names.

2. 2. Create new data connection

Press ADD.
Press Name.
Key in One NZ Internet and press OK.
One NZ Internet

3. 3. Enter APN

Press APN.
Key in vodafone and press OK.
vodafone

4. 4. Enter country code

Press MCC.
Key in 530 and press OK.
530

5. 5. Enter network code

Press MNC.
Key in 01 and press OK.
01

6. 6. Select authentication type

Press Authentication type.
Press PAP.

7. 7. Select APN type

Press APN type.
Key in default and press OK.
default

8. 8. Save data connection

Press MORE.
Press Save.
Press the field next to the data connection to activate it.

9. 9. Return to the home screen

Press the Home key to return to the home screen.
