Samsung Galaxy Note20 Ultra 5G
Set up your phone for picture messaging
A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.
Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.

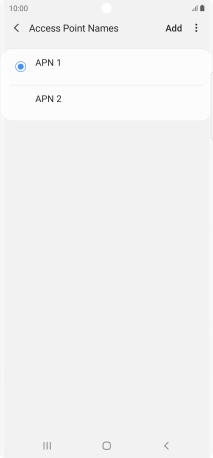

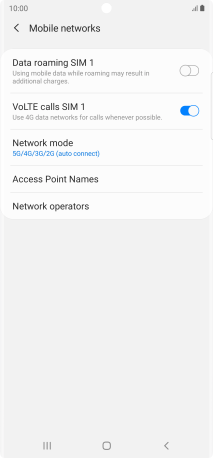

Press Access Point Names.

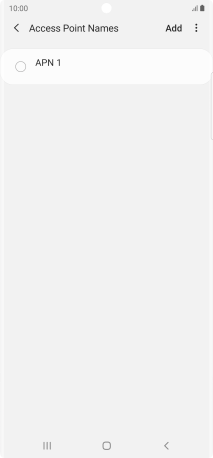

Press Add.

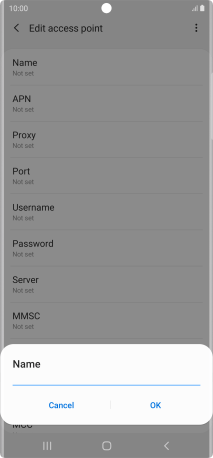

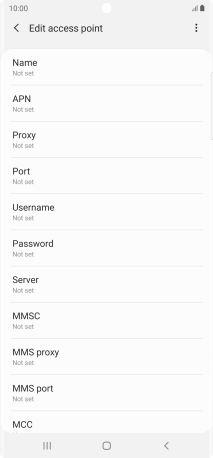

Press Name.
Key in Vodafone MMS and press OK.

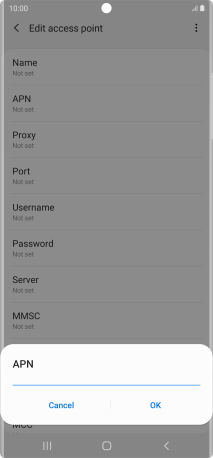

Press APN.
Key in live.vodafone.com and press OK.

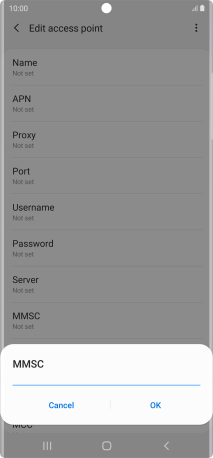

Press MMSC.
Key in http://pxt.vodafone.net.nz/pxtsend and press OK.

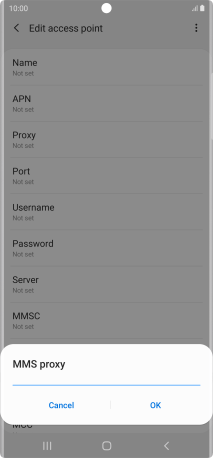

Press MMS proxy.
Key in 172.030.038.003 and press OK.

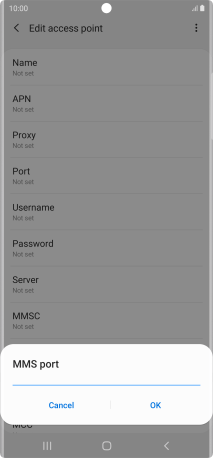

Press MMS port.
Key in 8080 and press OK.

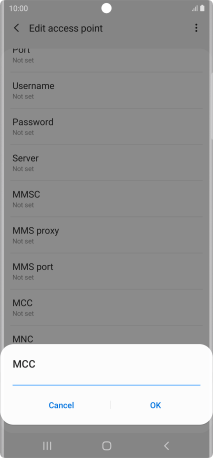

Press MCC.
Key in 530 and press OK.

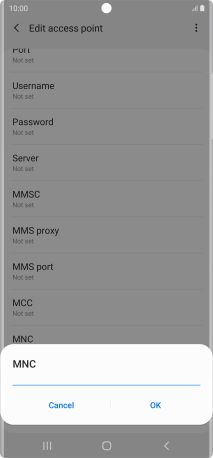

Press MNC.
Key in 01 and press OK.

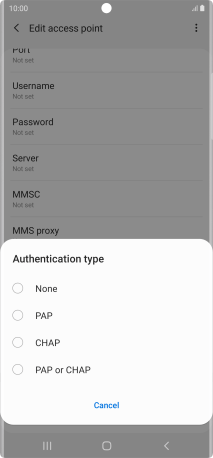

Press Authentication type.
Press PAP.

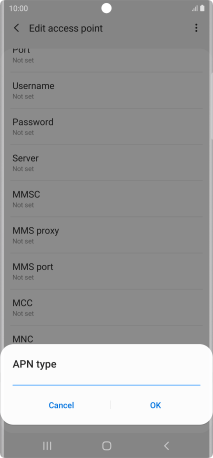

Press APN type.
Key in mms and press OK.

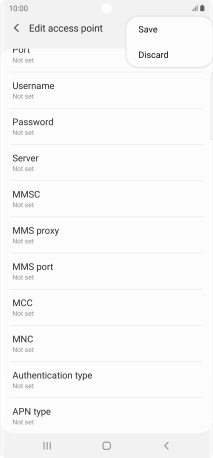

Press the menu icon.
Press Save.
Press the Home key to return to the home screen.
1. 1. Find "Access Point Names"
2. 2. Create new data connection
3. 3. Enter a name for the connection
4. 4. Enter APN
5. 5. Enter MMSC
6. 6. Enter IP address
7. 7. Enter port number
8. 8. Enter country code
9. 9. Enter network code
10. 10. Select authentication type
11. 11. Enter APN type
12. 12. Save data connection
13. 13. Return to the home screen
