OPPO Find X3 Pro

OPPO Find X3 Pro

Android 11.0

How to guides

Set up your phone for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 18

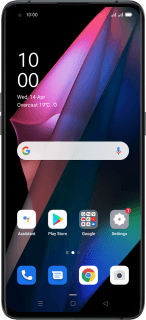

Slide two fingers downwards starting from the top of the screen.

Step 2 of 18

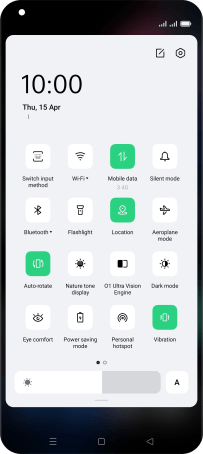

Press the settings icon.

Step 3 of 18

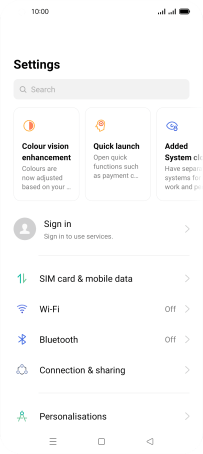

Press SIM card & mobile data.

Step 4 of 18

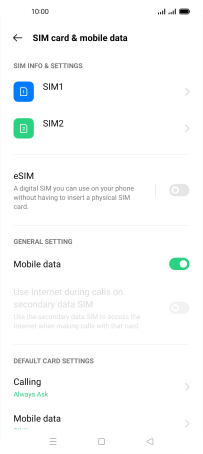

Press the required SIM.

Step 5 of 18

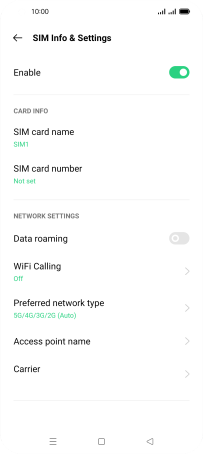

Press Access point name.

Step 6 of 18

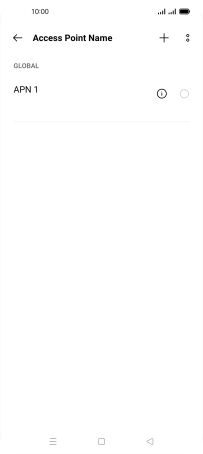

Press the add icon.

Vodafone MMS
Step 7 of 18

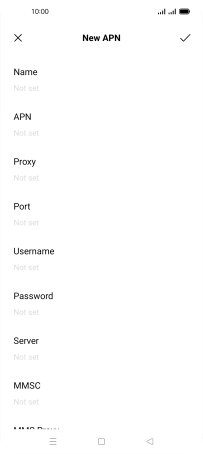

Press the field below "Name" and key in Vodafone MMS.

live.vodafone.com
Step 8 of 18

Press the field below "APN" and key in live.vodafone.com.

http://pxt.vodafone.net.nz/pxtsend
Step 9 of 18

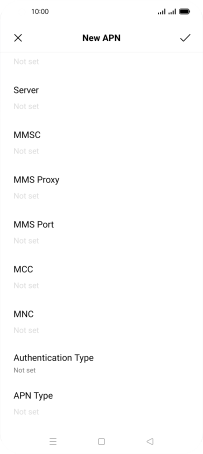

Press the field below "MMSC" and key in http://pxt.vodafone.net.nz/pxtsend.

172.030.038.003
Step 10 of 18

Press the field below "MMS Proxy" and key in 172.030.038.003.

8080
Step 11 of 18

Press the field below "MMS Port" and key in 8080.

530
Step 12 of 18

Press the field below "MCC" and key in 530.

01
Step 13 of 18

Press the field below "MNC" and key in 01.

Step 14 of 18

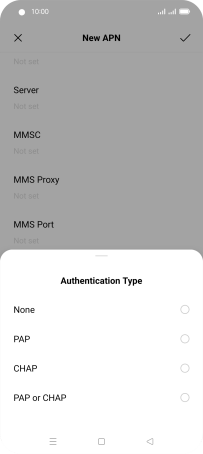

Press Authentication Type.

Step 15 of 18

Press PAP.

mms
Step 16 of 18

Press the field below "APN Type" and key in mms.

Step 17 of 18

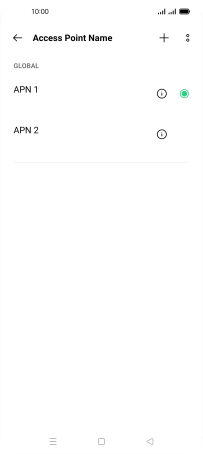

Press the confirm icon.

Step 18 of 18

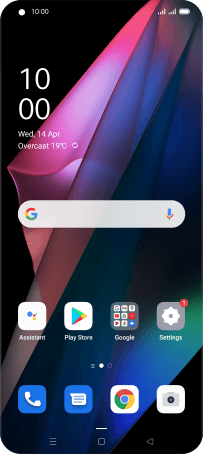

Press the Home key to return to the home screen.

1. 1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile data.
Press the required SIM.
Press Access point name.

2. 2. Create new data connection

Press the add icon.
Press the field below "Name" and key in Vodafone MMS.
Vodafone MMS

3. 3. Enter APN

Press the field below "APN" and key in live.vodafone.com.
live.vodafone.com

4. 4. Enter MMSC

Press the field below "MMSC" and key in http://pxt.vodafone.net.nz/pxtsend.
http://pxt.vodafone.net.nz/pxtsend

5. 5. Enter IP address

Press the field below "MMS Proxy" and key in 172.030.038.003.
172.030.038.003

6. 6. Enter port number

Press the field below "MMS Port" and key in 8080.
8080

7. 7. Enter country code

Press the field below "MCC" and key in 530.
530

8. 8. Enter network code

Press the field below "MNC" and key in 01.
01

9. 9. Select authentication type

Press Authentication Type.
Press PAP.

10. 10. Enter APN type

Press the field below "APN Type" and key in mms.
mms

11. 11. Save data connection

Press the confirm icon.

12. 12. Return to the home screen

Press the Home key to return to the home screen.
