Set up your phone for picture messaging

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 26

Slide two fingers downwards starting from the top of the screen.

Step 2 of 26

Press the settings icon.

Step 3 of 26

Press SIM card & mobile data.

Step 4 of 26

Press the required SIM.

Step 5 of 26

Press Access point name.

Step 6 of 26

Press the add icon.

Step 7 of 26

Press Name.

Vodafone MMS
Step 8 of 26

Key in Vodafone MMS and press the confirm icon.

Step 9 of 26

Press APN.

live.vodafone.com
Step 10 of 26

Key in live.vodafone.com and press the confirm icon.

Step 11 of 26

Press MMSC.

http://pxt.vodafone.net.nz/pxtsend
Step 12 of 26

Key in http://pxt.vodafone.net.nz/pxtsend and press the confirm icon.

Step 13 of 26

Press MMS Proxy.

172.030.038.003
Step 14 of 26

Key in 172.030.038.003 and press the confirm icon.

Step 15 of 26

Press MMS Port.

8080
Step 16 of 26

Key in 8080 and press the confirm icon.

Step 17 of 26

Press MCC.

530
Step 18 of 26

Key in 530 and press the confirm icon.

Step 19 of 26

Press MNC.

01
Step 20 of 26

Key in 01 and press the confirm icon.

Step 21 of 26

Press Authentication Type.

Step 22 of 26

Press PAP.

Step 23 of 26

Press APN Type.

mms
Step 24 of 26

Key in mms and press the confirm icon.

Step 25 of 26

Press the confirm icon.

Step 26 of 26

Press the Home key to return to the home screen.

1. 1. Find "Access point name"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile data.
Press the required SIM.

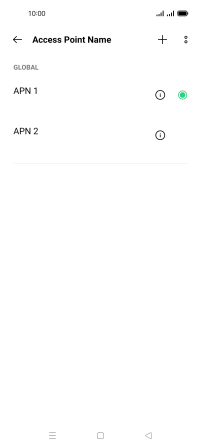

Press Access point name.

2. 2. Create new data connection

Press the add icon.
Press Name.
Key in Vodafone MMS and press the confirm icon.
Vodafone MMS

3. 3. Enter APN

Press APN.
Key in live.vodafone.com and press the confirm icon.
live.vodafone.com

4. 4. Enter MMSC

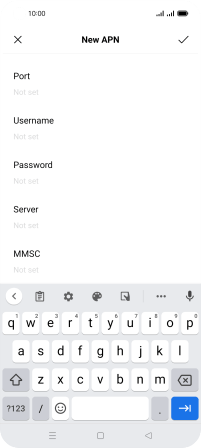

Press MMSC.
Key in http://pxt.vodafone.net.nz/pxtsend and press the confirm icon.
http://pxt.vodafone.net.nz/pxtsend

5. 5. Enter IP address

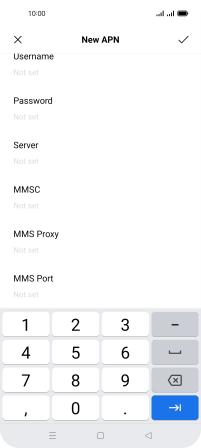

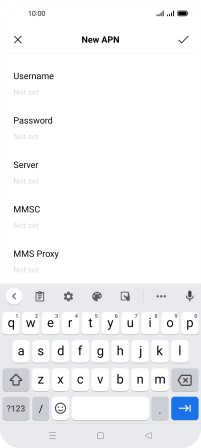

Press MMS Proxy.
Key in 172.030.038.003 and press the confirm icon.
172.030.038.003

6. 6. Enter port number

Press MMS Port.
Key in 8080 and press the confirm icon.
8080

7. 7. Enter country code

Press MCC.
Key in 530 and press the confirm icon.
530

8. 8. Enter network code

Press MNC.
Key in 01 and press the confirm icon.
01

9. 9. Select authentication type

Press Authentication Type.
Press PAP.

10. 10. Enter APN type

Press APN Type.
Key in mms and press the confirm icon.
mms

11. 11. Save data connection

Press the confirm icon.

12. 12. Return to the home screen

Press the Home key to return to the home screen.
